产品型号 / Model No .

W3590S

2W /10 turn /1K 2K 5K 10K 20K 50K 100K /precision rotary potentiometer Electrical Performance : Resistance Range : 100-100 K Resistance Tolerance : 2%,5% Independent linearity : 0.25% Effective Electric Travel: 3600 -10 End Terminal resista...

Inquiry Now

Detailed Information

2W /10 turn /1K 2K 5K 10K 20K 50K 100K /precision rotary potentiometer

Electrical Performance :

Resistance Range : 100Ω-100 KΩ
Resistance Tolerance : ±2%,±5%
Independent linearity : ±0.25%
Effective Electric Travel: ≥3600 °-10°
End Terminal resistance : ≤0.2%R or 5Ω
Rotate Noise :.3%R or 3Ω
Insulated Resistance : R1≥1GΩ
Withstand Voltage : 101.3Pa 710V, 8.5Kpa 470V

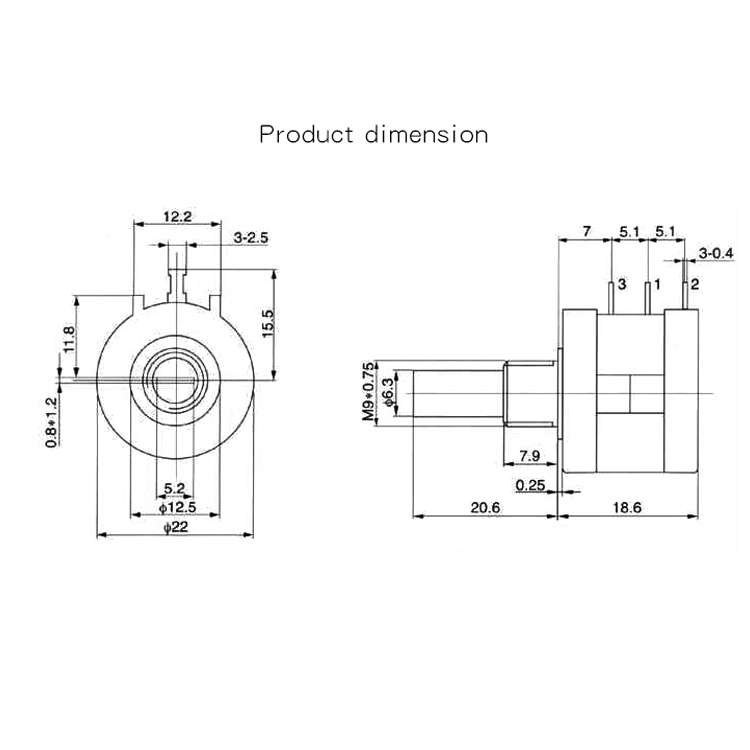

Physical Specifications:

Total Mechanical Travel : 3600 °± 10°
Total Torque : ≤36 N.m
Stop Torque : ≥300mN.m
Standard Package : 20 pcs/ box
