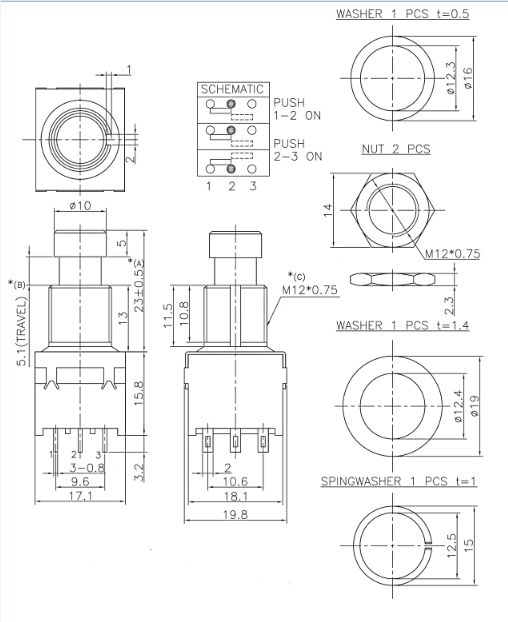

Gold 3PDT Foot Switch
Rating ： 9V DC 1A
Contact Resistance： 30mΩ max
Insulation Resistance : 500V DC-100mΩ min
Withstand Voltage: 500V AC-1 minute
Operating Force : 2.5±1Kgf
Life Cycle: 10,000 cycles
![]()
Rating ： 9V DC 1A
Contact Resistance： 30mΩ max
Insulation Resistance : 500V DC-100mΩ min
Withstand Voltage: 500V AC-1 minute
Operating Force : 2.5±1Kgf
Life Cycle: 10,000 cycles
