12mm size rotary encoder

Current position：Home > Products > Rotary Encoder > 12mm size rotary encoder >

产品型号 / Model No .

WEC121

12mm Rotary Encoder with push switch 24 pulse/ 24 Detets , 12 Pulse / 12 detents Power Rating：5V DC 5mA Contact Resistance：10 max Insulation Resistance：50V DC- 10M min Withstand Voltage：50V AC 1 minute Operating Force：30-200gf.cm...

Inquiry Now

Detailed Information

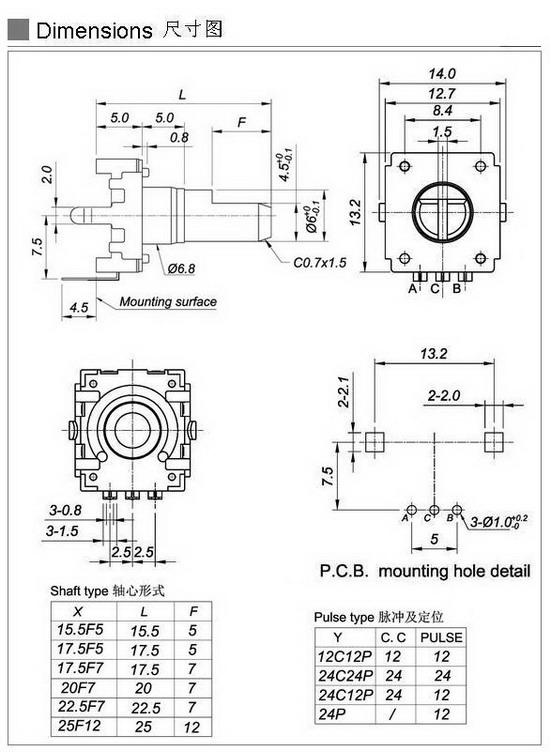

12mm Rotary Encoder with push switch
24 pulse/ 24 Detets , 12 Pulse / 12 detents

　Power Rating：5V DC 5mA

　Contact Resistance：10Ω max

　Insulation Resistance：50V DC- 10MΩ min

　Withstand Voltage：50V AC 1 minute

　Operating Force：30-200gf.cm

　Life Cycle：30000 cycles min

Inquiry Details

Name and Model

Name and Model：
Descriptions：
Require Quantity：
Company Name：
Your Name：
Your E-mail：
Your Mobile：
